Modular Mortuary Cold Rooms

Modular Mortuary Cold Rooms

Request for Quote

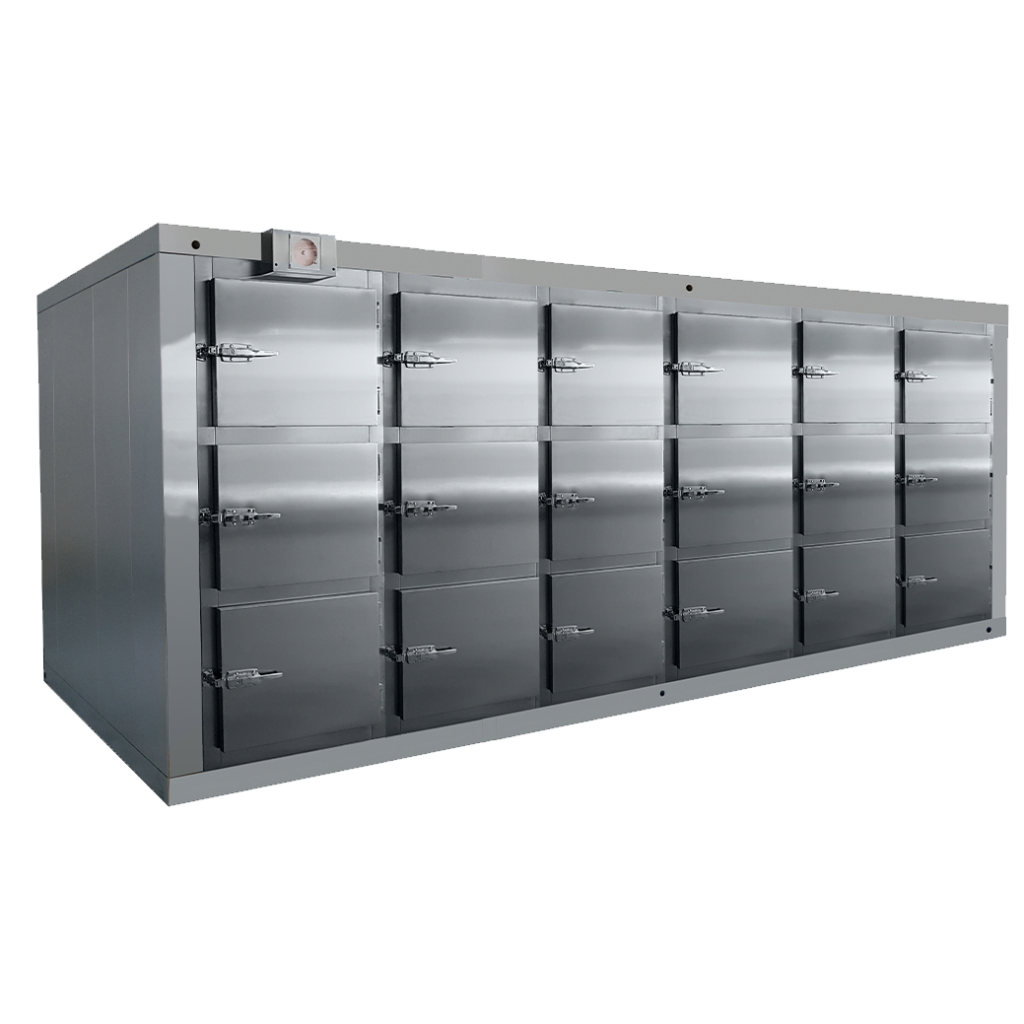

DSI Modular Mortuary Cold Rooms are designed to ensure efficient management of temperature-sensitive storage for human remains. These modular chambers are built for durability and flexibility, available in two variants: Remote Cooling Systems and Monobloc Cooling Systems. The chambers maintain optimal storage temperatures, ensuring the safe and secure preservation of bodies in hospitals, pathology laboratories, and other medical facilities.

Categories: ,

Description

Key Features:

  1. Modular Design: Easy assembly with 100 mm thick AISI 304 stainless steel panels and CFC/HCFC-free insulation.
  2. Temperature Variants: Available in Negative (-18°C to -22°C), Positive (0°C to +5°C), and Dual (0°C to -20°C) temperature ranges.
  3. Fire Safety: Cyclopentane insulation complies with UL94 HF-1 fire standards.
  4. Load Capacity: Reinforced floor supports up to 300 kg/m².
  5. Hygienic & Durable: AISI 304 stainless steel interior and exterior, designed for easy cleaning.
  6. Advanced Door Design: PVC frame with heating element and high-strength locking mechanism.
  7. Pressure Compensation Valve: Equalizes pressure during door opening to protect seals.
  8. Optimized Panel Design: L-shaped corners for faster assembly and stability.
  9. Ventilated Base: PVC spacers prevent moisture damage by allowing airflow beneath the cold room.
  10. Energy Efficient: Low energy consumption while maintaining consistent temperatures.

Description Table

Model Modular Mortuary Cold Rooms
Type Modular Cold Room
Cooling System Variants Remote Cooling System (RU), Monobloc Cooling System (CU)
Temperature Range Negative: -18°C to -22°C
Insulation High-density cyclopentane foam (CFC and HCFC-free)
Internal Material AISI 304 Stainless Steel
External Material AISI 304 Stainless Steel
Floor Load Capacity 300 kg/m²
Door Type Hinged, with integrated heating element for ice prevention
Door Lock High-strength locking mechanism
Pressure Compensation Valve Yes, for quick pressure equalization
Lighting Integrated LED light
Alarm System High/Low temperature, door open, probe errors
Optional Features Remote control options, tropicalized version, additional probes
Refrigerant R290 (Eco-friendly)
Power Supply 230V / 50Hz / 1 Phase
Dimensions (W × D × H) Customizable based on model (Contact for specific sizes)
Weight Variable based on configuration
Shipping Weight Variable based on configuration
