Description

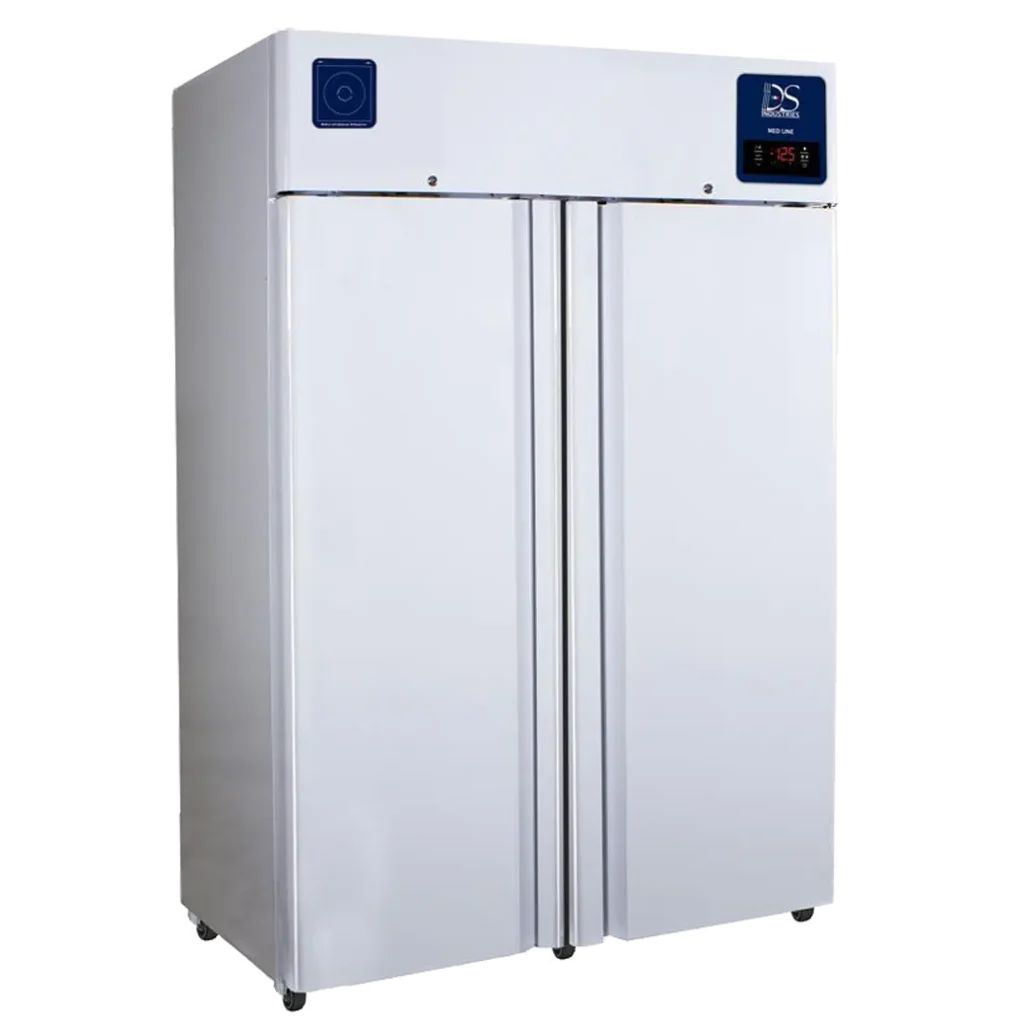

| Model | DSI-PGM14B |
| Type | Reach-in laboratory refrigerator |
| Doors | 2 full doors |
| Capacity | 1400 L / 49.4 ft³ |
| Temperature Range | +2°C to +16°C (35.6°F to 60.8°F) |
| Ambient Temperature | 32°C / 89.6°F |
| Temperature Controller | Electronic digital controller |
| Alarms | High/low temperature, power failure, probe error |
| Dry Contact | Standard (remote alarm) |
| Refrigeration System | Monoblock refrigeration system |
| Refrigerant | R290 (Propane – eco-friendly) |
| Interior Material | Hot‑dip galvanized steel with PVC coating |
| Exterior Material | Hot‑dip galvanized steel with PVC coating |
| Shelves | 6 epoxy-coated wire shelves (installed per full door section) |
| Castors | 2 with brake, 3 without |
| Insulation | High-density cyclopentane, CFC-free |
| Lighting | Internal LED light (standard) |
| Lock | Key lock (standard) |
| Pass-Through Port | Ø 32 mm (1¼”) – left side |
| Power Supply | 230V / 50Hz |
| Current | 1.5 A |
| Absorbed Power | 400 W |
| Plug Type | Schuko 16A |
| Cabinet Dimensions (W×D×H) | 59″ × 31″ × 83″ (1499 mm × 787 mm × 2112 mm) |
| Shipping Dimensions (W×D×H) | 63″ × 34″ × 87″ (1600 mm × 864 mm × 2210 mm) |
| Shipping Weight | 210 kg / 463 lbs |
| Gas Type | R290 |
