Description
Model DSI‑CV4 (–30°C)
Capacity: 220 L
Structure
The external structure is made of hot‑dip galvanized, anti‑corrosion, non‑toxic steel sheet coated with a PVC film. The internal structure is made of Scotch‑Brite stainless steel.
Insulation
An 80 mm insulation layer is obtained through high‑density, CFC‑free polyurethane foam injection, ensuring optimal product preservation and energy efficiency.
Door
Solid self‑closing door with a four‑sided magnetic gasket for a perfect seal. Right‑hand opening, or left‑hand opening upon request. Equipped with a key lock.
Internal Fittings
Choice of:
- Four removable Scotch‑Brite stainless steel drawers with transparent front, mounted on anti‑tilt telescopic guides allowing full drawer extension, or
- Four smooth, height‑adjustable, removable Scotch‑Brite stainless steel shelves.
Temperature
Adjustable temperature range: –10°C to –32°C. Factory setting: –30°C, adjustable to one decimal place.
Refrigeration System
Hermetic closed‑circuit compressor, quiet operation, equipped with thermal protector and finned condenser with helical‑fan motor (suitable for tropical climates). Static evaporator. Refrigerant gas: CFC/HCFC‑free R290.
Defrosting
Manual defrosting with unit shutdown.
Capacity
220 litres.
Voltage
230V/50 Hz (230V/60 Hz and 115V/60 Hz available on request).
Power Consumption
351 Watts.
Refrigerant Gas
Natural R290 gas, free of CFC/HCFC.
Control Electronics and Alarms
Available options:
- LGK‑2 digital control panel
- TP‑1 full‑touch control panel
Data Logger
Temperature and alarm data recording system, downloadable via USB flash drive.
Standard Equipment
- Four shelves or four drawers (user’s choice)
- Four unidirectional wheels and two stabilizing feet
- Key lock
- Detachable 3×1 power cable with Schuko plug (UK plug available on request)
- Electrical interference filter
- Protection fuses (on switch and electronic board)
- Power on/off and settings protected by password
- Electronic control panel with alarm system
- Dry contact for remote alarm
- Data logger with USB port for data download
- Memory of recent alarms viewable on display
Optional Accessories
- Internal divider kit for drawers
- Additional shelf
- Smooth shelf with raised edges
- Swivel wheels with front brakes
- Weekly chart temperature recorder powered by 1.5V battery, supplied with 52 discs and 1 pen
- Self‑powered control unit with 12V backup battery (LGK‑2) or rechargeable battery pack (TP‑1 full touch) for temperature display and alarm acquisition during power outages
- GSM module for sending alarm notifications via SMS (LGK‑2)
- LAN port for connecting one or more units via Ethernet to a PC (LGK‑2)
- Cloud connectivity (TP‑1 full touch)
- Independent safety thermostat (DIN 13277 compliant)
- 25 mm port for external probe passage
- Digital electronic lock (TP‑1 full touch)
- 115V/60Hz power supply
External Dimensions and Weight
640 × 620 × 1600 mm (W × D × H) – 94 kg
Dimensions and Weight with Packaging
Cardboard on pallet: 700 × 700 × 1780 mm – 121 kg
Wooden crate (optional): 790 × 740 × 1960 mm – 156 kg
Compliance
Compliant with:
Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU.

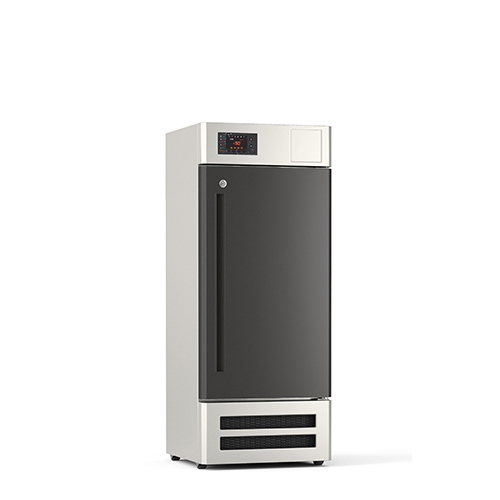

The image may not necessarily represent the product in its standard configuration.
