Description

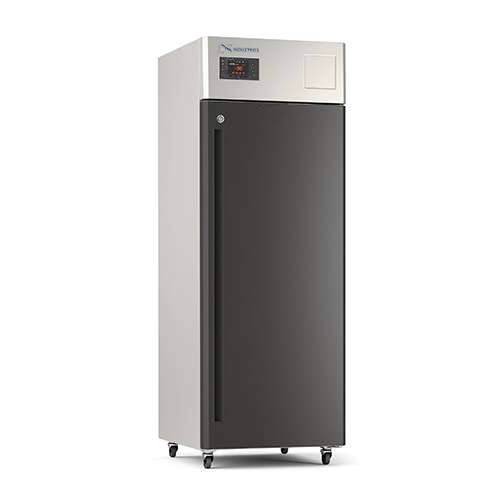

DSI-AF70BL
Model DSI-AF70BL (-30°C)
Capacity 700LT
Ecco la traduzione corretta in inglese, completamente rivista per eliminare errori presenti nel testo originale e renderla tecnicamente precisa e professionale.
Structure
External structure made of hot‑dip galvanized, anti‑corrosion, non‑toxic steel sheet, coated with PVC film. Internal structure in Scotch‑Brite stainless steel.
Insulation
60 mm insulation thickness obtained through high‑density, CFC‑free polyurethane foam injection, ensuring optimal product preservation and energy savings.
Door
Solid self‑closing door with four‑sided magnetic gasket for a perfect seal. Right‑hand opening, or left‑hand opening upon request.
Internal Fittings
Four smooth, height‑adjustable shelves made of Scotch‑Brite stainless steel, mounted on anti‑tilt guides.
Temperature
Adjustable temperature range from –10°C to –32°C, with factory setting at –30°C. Temperature adjustable to one decimal place.
Refrigeration System
Hermetic closed‑circuit compressor, quiet operation, equipped with thermal protector and finned condenser with helical‑fan motor (also suitable for tropical climates). Fan‑assisted evaporator. This air‑circulation system ensures uniform internal temperature. When the door is opened, the fan stops automatically to prevent cold air from escaping. Refrigerant gas: CFC/HCFC‑free R290.
Defrosting
Fully automatic defrosting cycle with evaporation of condensate water.
Capacity
700 litres.
Voltage
230V/50Hz (230V/60Hz and 115V/60Hz available on request).
Power Consumption
560 Watts.
Refrigerant Gas
Natural R290 gas, free of CFC/HCFC.
Control Electronics and Alarms
Available options:
- LGK‑2 digital control panel
- TP‑1 full‑touch control panel
Data Logger
Temperature and alarm data recording system, downloadable via USB flash drive.
Standard Equipment
- Four Scotch‑Brite stainless steel shelves
- Four unidirectional wheels and two stabilizing feet
- Detachable 3×1 power cable with Schuko plug (UK plug available on request)
- Protection fuses (on switch and electronic board)
- Electrical interference filter
- Power on/off and settings protected by password
- Electronic control panel with alarm system
- Dry contact for remote alarm
- Data logger with USB port for data download
- Memory of recent alarms viewable on display
Optional Accessories
- Drawers on telescopic guides in Scotch‑Brite stainless steel with transparent front (max 7)
- Internal dividers for drawers
- Additional shelf
- Smooth shelf with raised edges
- Swivel wheels with front brakes
- Weekly chart temperature recorder
- Self‑powered control unit with 12V backup battery (LGK‑2) or rechargeable battery pack (TP‑1 full touch) for temperature display and alarm acquisition during power outages
- GSM module for sending alarm notifications via SMS (LGK‑2)
- LAN port for connecting one or more units via Ethernet to a PC (LGK‑2)
- Cloud connectivity (TP‑1 full touch)
- 25 mm port for external probe passage
- Digital electronic lock (TP‑1 full touch)
- 115V/60Hz power supply
- 80 mm insulated heater
Dimensions and Weight
700 × 800 × 1990 mm (W × D × H) – 150 kg
Dimensions and Weight with Packaging
Cardboard on pallet: 750 × 850 × 2150 mm – 162 kg
Wooden crate (optional): 960 × 840 × 2260 mm – 215 kg
Compliance
Compliant with:
Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU.
